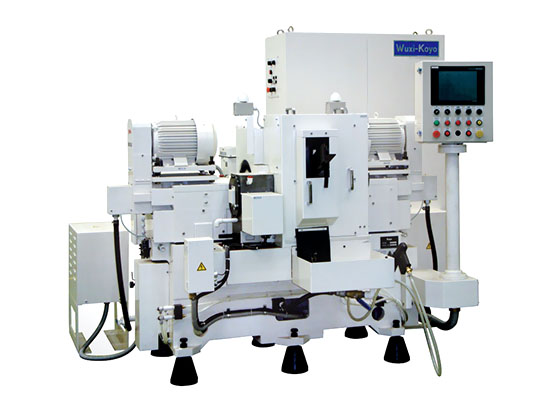

HD3C Horizontal Double-end Surface Grinder
|
|
Main Parameters |
|
Model |
HD3C |
|
Form |
rotary loading disc form |
|
Items |
|
Machining range |
Machinable diameter (outer diameter) |
φ6-φ50mm |
|
Machinable width |
1-60mm |
|
Grinding wheel |
Dimensions (outer diameter*width) |
φ355（φ305）×50mm |
|
Rotary speed |
1740rpm |
|
Motor |
for grinding wheel spindle |
5.5kw |
|
Loading disc |
Rotary speed |
1-4rpm |
|
Size |
400mm(P.C.D) |
|
Standard size |
Width |
2360mm |
|
Depth |
2000mm |
|
Height |
about 1855mm |
|
Weight |
about 3000kg |
|
Power voltage |
380VAC (50Hz) three-phase |
|
Control voltage |
110VAC 24VDC | |
|
Standard Accessories
● Motor and electric control box (with galvanometer)
●Grinding wheel stand tilt reading device
● Grinding wheel (its specifications are determined additionally.)
●Machined object feeding device (pass-type grinding form)
● Loading disc driving device (rotary loading disc)
● Horizontal adjusting foot pad and bolt
● Work tools (such as Allen wrench) |
Special Accessories
● Grinding wheel micromotion compensating device (button) (minimum unit)
● Dressing device
● Diamond for dressing
● Automatic loading and unloading device
● Automatic machined object supply device
● Loading channel
● Loading disc (rotary)
●Guide plate (pass-type grinding form)
●Cooling liquid supply and purification device
● Automatic lubrication device
● Automatic detection device | |
| |
|
| |
| |
|
Features of HD3C |
CNC control system |
Precision high rigidity
●As at the wheel axle center to configure highly rigid rectangular guides
●At the same time achieve a "prevent heat distortion, high accuracy, re-grinding" high rigidity bed
Simple, practical operational
●By CNC control: make everything working conditions and compensation have achieved positive and negative conversational shortcuts
●Automatic trimming device uses a high-performance wheel (CBN, diamond grinding wheel, etc.) dressing
Labor-saving, energy-saving. Saves space
●Corresponding to all the various workpiece feeding device, automatic feeding devices and other rich choice group
●According to FA, FMS structure of mechatronic design philosophy miniaturization |
|
|
|
|
Touch-screen operation panel |
| |
|
|
|
CNC CRT |
| | |
|
|
| |
| Standard Size |
|
|
|
|
|
|
